Rediscover Unmatched Durability with New Old Stock Hardware

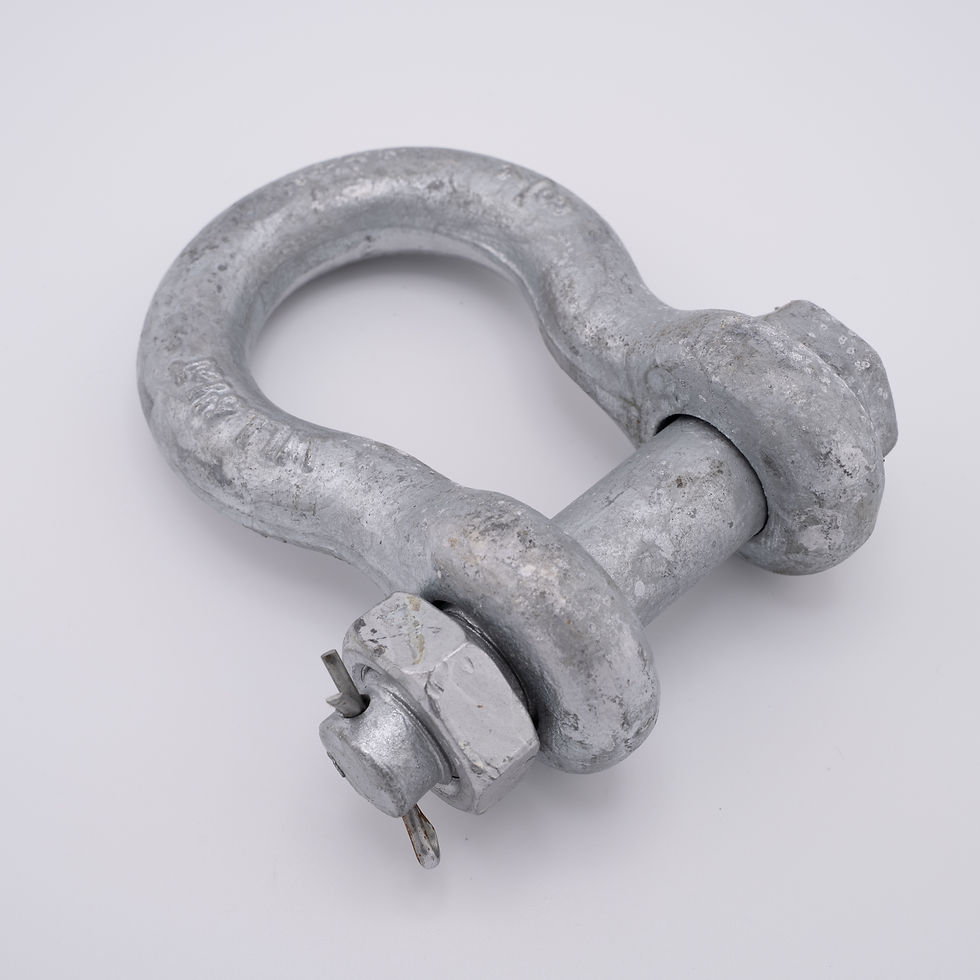

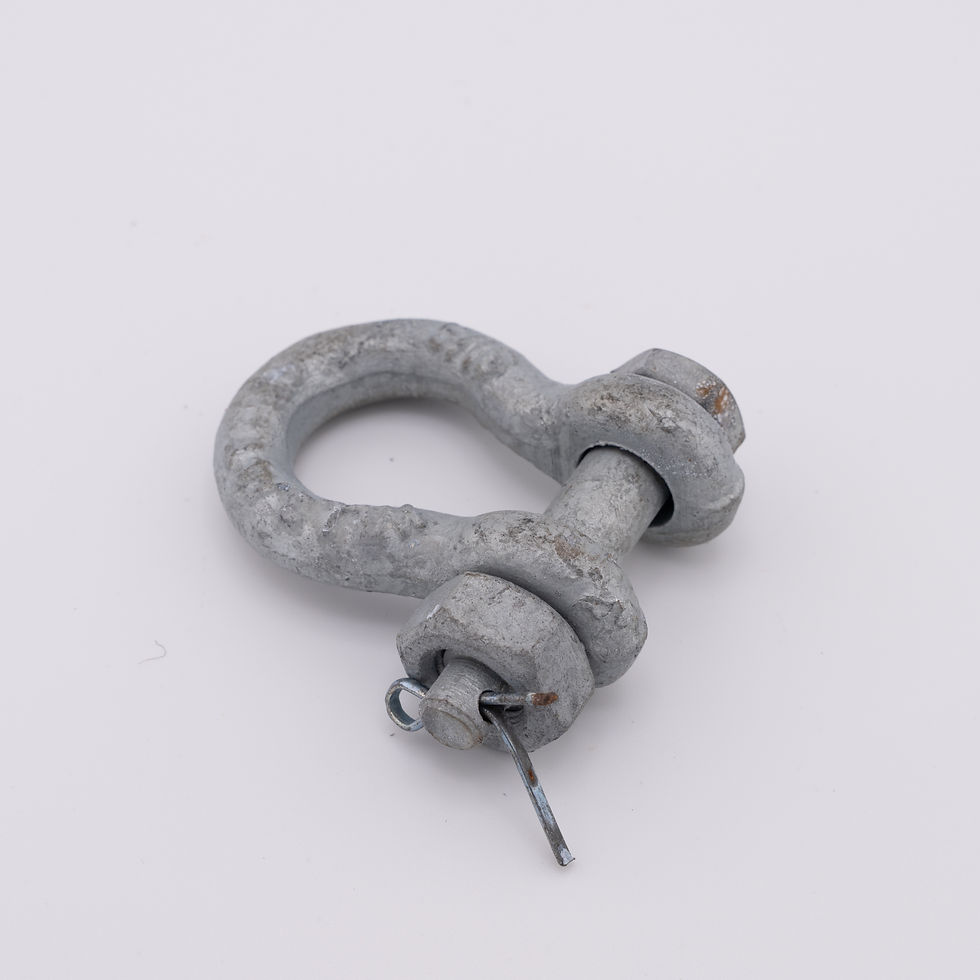

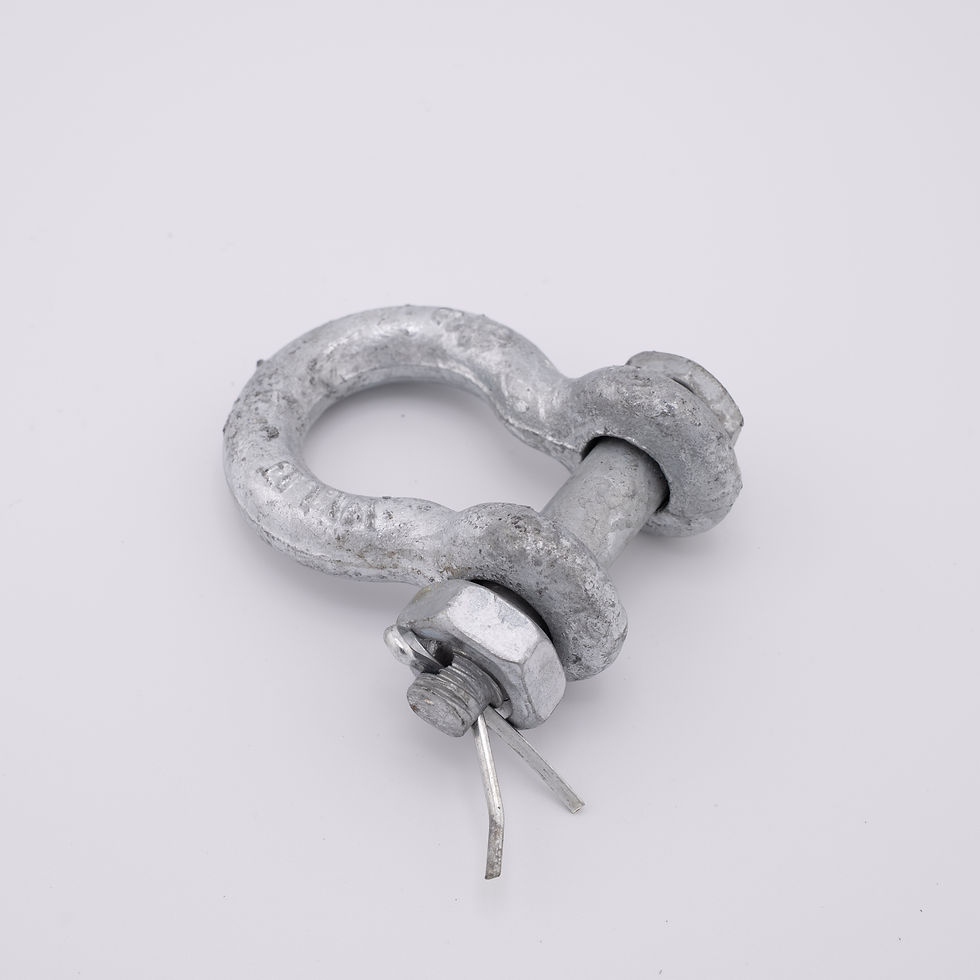

At Vintage Parts Revival, we believe some things were simply built better in the past. These Galvanized Bolt-Type Anchor Shackles are a perfect example—brand new, never used, and manufactured to a standard of quality that’s hard to find today. Listed as New Old Stock (NOS), these shackles offer the perfect combination of industrial grade materials and pristine, ready-to-work condition.
This isn't your average big-box store hardware. This is heavy-duty, forged steel rigging designed for the toughest jobs. The bolt-type pin with a securing nut and cotter pin ensures your connection is permanent and safe, ideal for applications where the shackle will remain in place for extended periods or is subject to movement and vibration. The hot-dip galvanized coating provides superior corrosion resistance, making these shackles perfect for marine, agricultural, and outdoor industrial use.
Whether you're outfitting a recovery vehicle, setting up farm equipment, or need reliable hardware for marine rigging, these anchor shackles provide the strength and peace of mind you need.
Features & Benefits:
Secure Bolt-Type Design: The bolt, nut, and cotter pin assembly provides a safe and secure connection that resists accidental loosening, perfect for semi-permanent or long-term installations.
Superior Corrosion Resistance: Hot-dip galvanized finish protects the steel from rust and corrosion, ensuring a long service life even in harsh marine or outdoor environments.
Heavy-Duty Forged Steel: Constructed from high-strength forged steel for maximum durability and load-bearing capacity.
Clear Load Ratings: The Working Load Limit (WLL) is clearly embossed on the shackle body for quick identification and safe operation.
New Old Stock (NOS): These are not reproductions. They are genuine, unused vintage parts, offering robust, old-school manufacturing quality.
Common Applications:
Vehicle Recovery & Towing (Winching, Connecting Straps)
Marine Rigging (Anchor Chains, Mooring Lines, Hoisting)
Farming & Agricultural Equipment Connections
Logging and Forestry Operations
Securing Heavy Cargo and Industrial Lifting
Structural and Architectural Rigging
Select your required size from the dropdown menu and add a piece of industrial history and reliability to your toolkit today!
Specifications
| Size (Diameter) | Working Load Limit (WLL) | Pin Type | Finish | Material | Condition |
| 1/4′′ | 0.5 Tons (1,000 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 5/16′′ | 0.75 Tons (1,500 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 3/8′′ | 1 Ton (2,000 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 7/16′′ | 2.67 Tons (5,340 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 5/8′′ | 3.25 Tons (6,500 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 5/8′′ | 5 Tons (10,000 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
| 7/8′′ | 6.5 Tons (13,000 lbs) | Bolt, Nut & Cotter Pin | Hot-Dip Galvanized | Forged Steel | New Old Stock (NOS) |
Note: Always select a shackle with a Working Load Limit that meets or exceeds the total load you intend to apply. Never exceed the stated WLL.
