The Perfect Foundation for Your Smokestack, With a Fit You Can't Get Anywhere Else.

If you've ever struggled to get a perfect, leak-free seal between the smokestack and the boiler, you know the frustration. Original bases are often corroded, cracked from heat stress, or have a distorted mounting surface from decades of use and thermal changes leading to warping. We knew we could create a better solution.

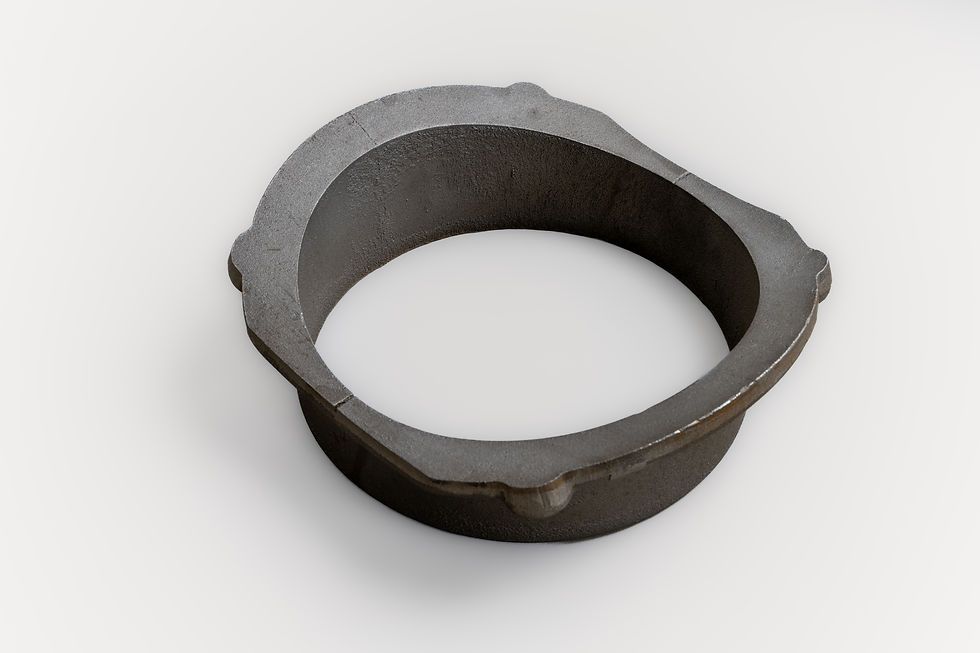

This isn't just a reproduction; it's a precision-engineered foundation for your stack. The process started by 3D scanning the actual boiler barrel of an original smokebox of an early 15Hp M. Rumely. This allowed us to perfectly capture the exact curvature of the mounting surface. From that scan, we created a CAD model and a 3D-printed pattern for sand casting. The result is a base flange that sits perfectly flush against the boiler, creating a tight seal that prevents those annoying exhaust leaks at the source.
We cast these parts in high-strength Ductile Iron, a significant upgrade over the original gray iron. It offers far greater resistance to the constant heat cycles and vibrations that can cause old parts to crack, ensuring this base will last.

Need a Custom Fit? We Can Do That.  While this was scanned to fit the 11” OD stack of an early M Rumely, with a barrel of a 30-3/8” OD, these numbers can be changed to fit virtually any application.

Here’s what makes our M Rumely stack flange truly special. Because the part was designed in CAD, we have the ability to adjust the mounting curvature. If your engine has a different boiler barrel diameter or you're working on a unique project, we can modify the digital file to create a custom-casted base specifically for your machine. This ensures a perfect fit, even on non-standard restorations. Contact us to discuss your custom needs.

Features & Benefits:

Precision Boiler Profile: 3D scanned from an original boiler barrel to ensure a perfect, leak-free seal against the curved surface.
Custom-Fit Available: The digital CAD design allows us to adjust the mounting curvature to fit different boiler diameters.
Upgraded Ductile Iron: Cast in high-strength ductile iron for superior durability and resistance to cracking from heat and vibration.
Solid Stack Foundation: Provides a secure and stable base for mounting your smokestack.
Made for Restorers: A part designed to solve a common and frustrating restoration challenge with modern precision.

Fitment Note:

This Smokestack Base Flange is designed from the profile of an M. Rumely 15Hp steam traction engine. While it will be a direct fit for standard engines of this type, we offer custom adjustments for other models. Please verify your boiler diameter before ordering.

Specifications

AttributeDescriptionPart NameSmokestack Base FlangeFitmentM. Rumely 15Hp Steam Traction Engine (1890-1907)Also Known AsStack Base, Smokebox Stack Flange, Smokestack Mounting RingMaterialHigh-Strength Ductile IronManufacturing3D Scanned & Sand CastCustomizationMounting curvature can be adjusted for custom orders
